Hallo zusammen,
wir haben heute vergeblich versucht unser neues Clarius Sono mit der DICOM Worklist zu verbinden. Auf dem Entgerät (iPhone oder iPad) wird immer wieder angezeigt dass die Worklist nicht erreichbar ist.
Interessanterweise funktioniert das DICOM Storage fehlerfrei.
Die beiden Module haben absolute Standard Einstellungen, auch von den Ports her. Beide Ports sind geöffnet und erreichbar.
Selbst eine Port Umstellung (Testweise probiert) bringt keine Änderungen.
Hat einer selber Erfahrungen gemacht oder tomedo habt ihr eine Idee ?
Serverversion ist die neuste, Clarius auch.

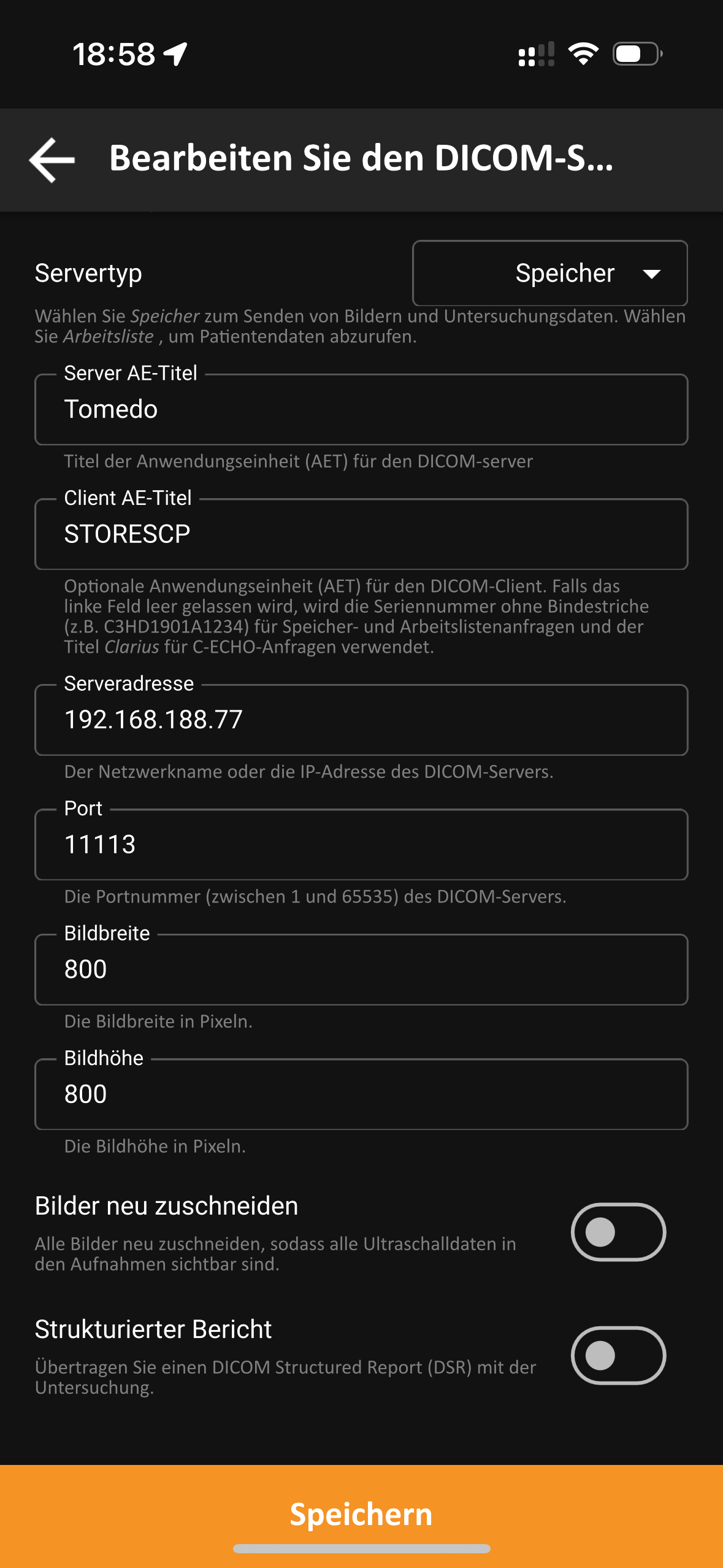

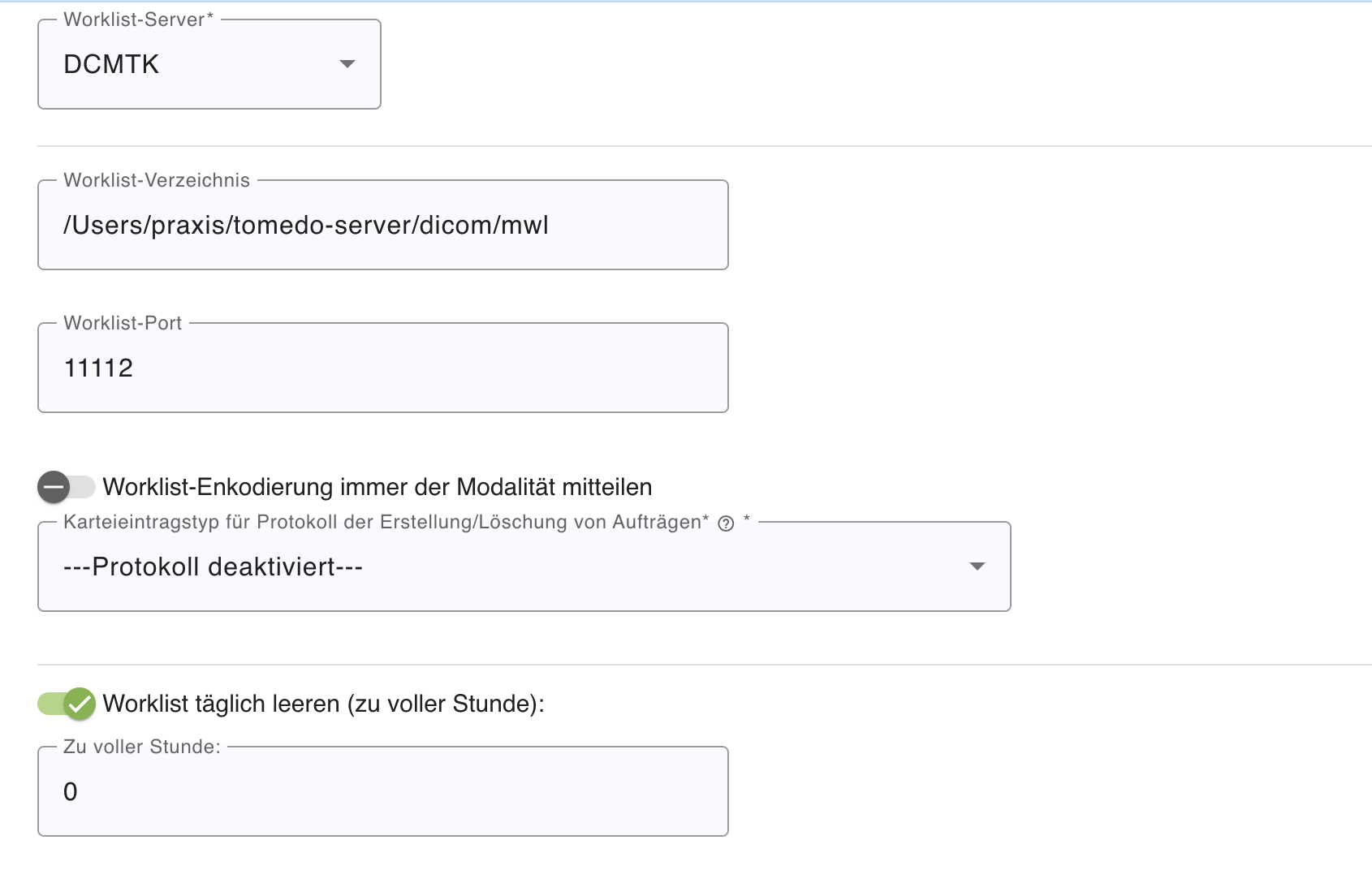

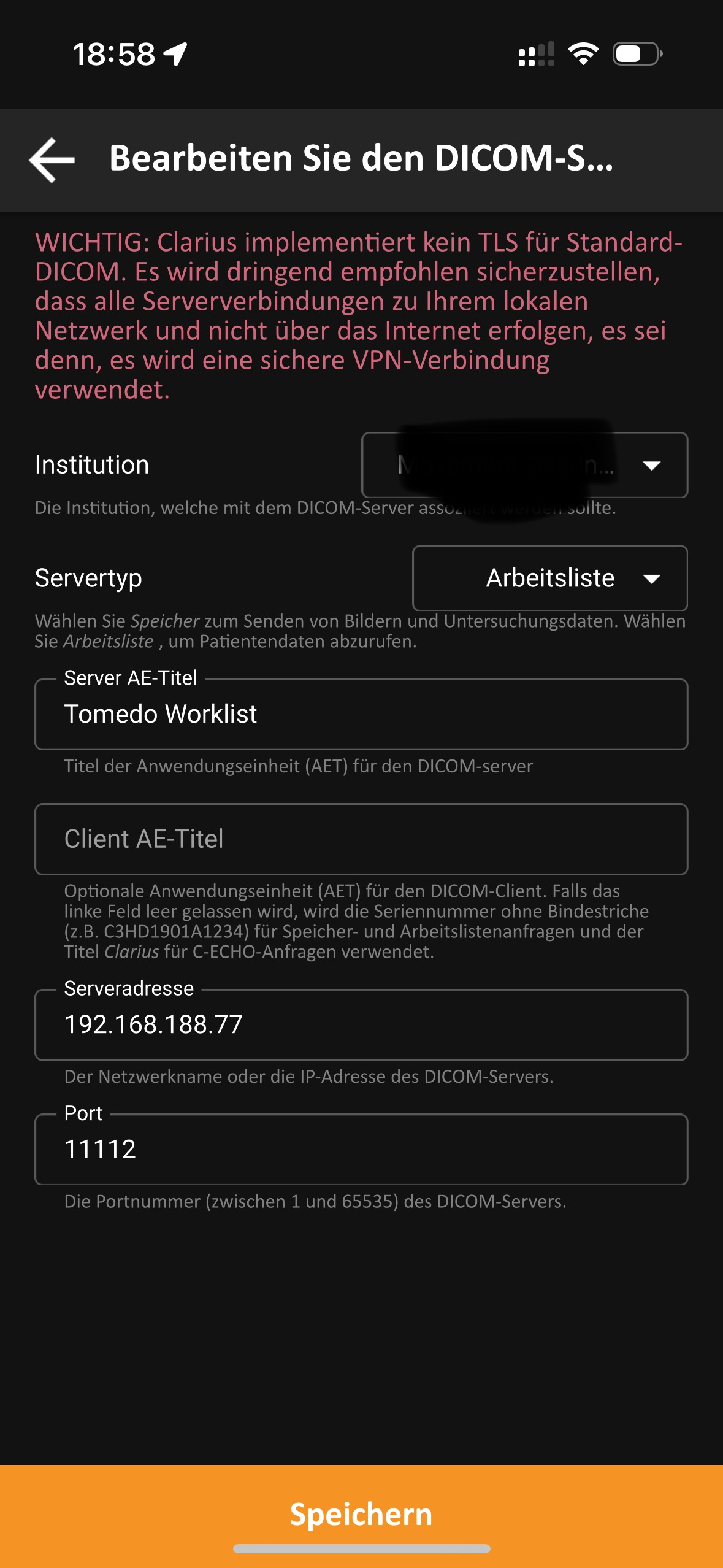

hier noch die Screenshots falls einem was auffallen sollte.
Update:
Hier noch das Logfile vom Clarius, vielleicht kann damit einer was anfangen :)
2025-07-01 19:36:10.472 DEBUG: ====================== BEGIN A-ASSOCIATE-RQ =====================
2025-07-01 19:36:10.472 DEBUG: Our Implementation Class UID: 1.2.276.0.7230010.3.0.3.6.8
2025-07-01 19:36:10.472 DEBUG: Our Implementation Version Name: OFFIS_DCMTK_368
2025-07-01 19:36:10.472 DEBUG: Their Implementation Class UID:
2025-07-01 19:36:10.472 DEBUG: Their Implementation Version Name:
2025-07-01 19:36:10.472 DEBUG: Application Context Name: 1.2.840.10008.3.1.1.1
2025-07-01 19:36:10.472 DEBUG: Calling Application Name: Clarius
2025-07-01 19:36:10.472 DEBUG: Called Application Name: Tomedo
2025-07-01 19:36:10.472 DEBUG: Responding Application Name:
2025-07-01 19:36:10.472 DEBUG: Our Max PDU Receive Size: 65536
2025-07-01 19:36:10.472 DEBUG: Their Max PDU Receive Size: 0
2025-07-01 19:36:10.472 DEBUG: Presentation Contexts:
2025-07-01 19:36:10.472 DEBUG: Context ID: 1 (Proposed)
2025-07-01 19:36:10.472 DEBUG: Abstract Syntax: =VerificationSOPClass
2025-07-01 19:36:10.472 DEBUG: Proposed SCP/SCU Role: Default
2025-07-01 19:36:10.472 DEBUG: Proposed Transfer Syntax(es):
2025-07-01 19:36:10.472 DEBUG: =LittleEndianImplicit
2025-07-01 19:36:10.472 DEBUG: Requested Extended Negotiation: none
2025-07-01 19:36:10.472 DEBUG: Accepted Extended Negotiation: none
2025-07-01 19:36:10.472 DEBUG: Requested User Identity Negotiation: none
2025-07-01 19:36:10.472 DEBUG: User Identity Negotiation Response: none
2025-07-01 19:36:10.472 DEBUG: ======================= END A-ASSOCIATE-RQ ======================
2025-07-01 19:36:10.473 INFO: Requesting Association
2025-07-01 19:36:10.473 TRACE: DUL FSM Table: State: 1 Event: 0
2025-07-01 19:36:10.473 TRACE: DUL Event: A-ASSOCIATE request (local user)
2025-07-01 19:36:10.473 TRACE: DUL Action: AE 1 Transport Connect
2025-07-01 19:36:10.521 TRACE: Receiving data via select()
2025-07-01 19:36:10.522 DEBUG: setting network send timeout to 60 seconds
2025-07-01 19:36:10.522 DEBUG: setting network receive timeout to 60 seconds
2025-07-01 19:36:10.522 TRACE: checking whether environment variable TCP_BUFFER_LENGTH is set
2025-07-01 19:36:10.522 TRACE: environment variable TCP_BUFFER_LENGTH not set, using the system defaults
2025-07-01 19:36:10.522 TRACE: checking whether environment variable TCP_NODELAY is set
2025-07-01 19:36:10.523 TRACE: environment variable TCP_NODELAY not set, using the default value (0)
2025-07-01 19:36:10.523 TRACE: DUL FSM Table: State: 4 Event: 1
2025-07-01 19:36:10.523 TRACE: DUL Event: Transport conn confirmation (local)
2025-07-01 19:36:10.523 TRACE: DUL Action: AE 2 Send Associate RQ PDU
2025-07-01 19:36:10.523 DEBUG: Constructing Associate RQ PDU
2025-07-01 19:36:10.523 TRACE: setting timeout for first PDU to be read to 2 seconds
2025-07-01 19:36:10.574 TRACE: Read PDU HEAD TCP: 03 00 00 00 00 04
2025-07-01 19:36:10.574 TRACE: Read PDU HEAD TCP: type: 03, length: 4 (04)
2025-07-01 19:36:10.574 TRACE: DUL FSM Table: State: 5 Event: 3
2025-07-01 19:36:10.574 TRACE: DUL Event: A-ASSOCIATE-RJ PDU (on transport)
2025-07-01 19:36:10.574 TRACE: DUL Action: AE 4 Associate Confirmation Reject
2025-07-01 19:36:10.574 DEBUG: Association Rejected:
2025-07-01 19:36:10.574 DEBUG: Result: Rejected Permanent, Source: Service User
2025-07-01 19:36:10.574 DEBUG: Reason: Called AE Title Not Recognized
2025-07-01 19:36:10.574 DEBUG: Cleaning up internal association and network structures
2025-07-01 19:36:10.643 TRACE: Configured 0 presentation contexts from config file
2025-07-01 19:36:10.643 TRACE: Adding another 1 presentation contexts configured for SCU
2025-07-01 19:36:10.643 DEBUG: Configured a total of 1 presentation contexts for SCU
2025-07-01 19:36:10.643 DEBUG: Request Parameters:
2025-07-01 19:36:10.643 DEBUG: ====================== BEGIN A-ASSOCIATE-RQ =====================
2025-07-01 19:36:10.643 DEBUG: Our Implementation Class UID: 1.2.276.0.7230010.3.0.3.6.8
2025-07-01 19:36:10.643 DEBUG: Our Implementation Version Name: OFFIS_DCMTK_368
2025-07-01 19:36:10.643 DEBUG: Their Implementation Class UID:
2025-07-01 19:36:10.643 DEBUG: Their Implementation Version Name:
2025-07-01 19:36:10.643 DEBUG: Application Context Name: 1.2.840.10008.3.1.1.1
2025-07-01 19:36:10.643 DEBUG: Calling Application Name: Clarius
2025-07-01 19:36:10.643 DEBUG: Called Application Name: Tomedo
2025-07-01 19:36:10.643 DEBUG: Responding Application Name:
2025-07-01 19:36:10.643 DEBUG: Our Max PDU Receive Size: 65536
2025-07-01 19:36:10.643 DEBUG: Their Max PDU Receive Size: 0
2025-07-01 19:36:10.643 DEBUG: Presentation Contexts:
2025-07-01 19:36:10.643 DEBUG: Context ID: 1 (Proposed)
2025-07-01 19:36:10.643 DEBUG: Abstract Syntax: =FINDModalityWorklistInformationModel
2025-07-01 19:36:10.643 DEBUG: Proposed SCP/SCU Role: Default
2025-07-01 19:36:10.643 DEBUG: Proposed Transfer Syntax(es):
2025-07-01 19:36:10.643 DEBUG: =LittleEndianImplicit
2025-07-01 19:36:10.643 DEBUG: Requested Extended Negotiation: none
2025-07-01 19:36:10.643 DEBUG: Accepted Extended Negotiation: none
2025-07-01 19:36:10.643 DEBUG: Requested User Identity Negotiation: none
2025-07-01 19:36:10.643 DEBUG: User Identity Negotiation Response: none
2025-07-01 19:36:10.643 DEBUG: ======================= END A-ASSOCIATE-RQ ======================
2025-07-01 19:36:10.644 INFO: Requesting Association
2025-07-01 19:36:10.644 TRACE: DUL FSM Table: State: 1 Event: 0
2025-07-01 19:36:10.644 TRACE: DUL Event: A-ASSOCIATE request (local user)
2025-07-01 19:36:10.644 TRACE: DUL Action: AE 1 Transport Connect
2025-07-01 19:36:10.687 TRACE: Receiving data via select()
2025-07-01 19:36:10.687 DEBUG: setting network send timeout to 60 seconds
2025-07-01 19:36:10.688 DEBUG: setting network receive timeout to 60 seconds
2025-07-01 19:36:10.688 TRACE: checking whether environment variable TCP_BUFFER_LENGTH is set
2025-07-01 19:36:10.688 TRACE: environment variable TCP_BUFFER_LENGTH not set, using the system defaults
2025-07-01 19:36:10.688 TRACE: checking whether environment variable TCP_NODELAY is set
2025-07-01 19:36:10.688 TRACE: environment variable TCP_NODELAY not set, using the default value (0)
2025-07-01 19:36:10.688 TRACE: DUL FSM Table: State: 4 Event: 1
2025-07-01 19:36:10.688 TRACE: DUL Event: Transport conn confirmation (local)
2025-07-01 19:36:10.688 TRACE: DUL Action: AE 2 Send Associate RQ PDU
2025-07-01 19:36:10.688 DEBUG: Constructing Associate RQ PDU
2025-07-01 19:36:10.689 TRACE: setting timeout for first PDU to be read to 2 seconds
2025-07-01 19:36:10.734 TRACE: Read PDU HEAD TCP: 03 00 00 00 00 04
2025-07-01 19:36:10.735 TRACE: Read PDU HEAD TCP: type: 03, length: 4 (04)
2025-07-01 19:36:10.735 TRACE: DUL FSM Table: State: 5 Event: 3
2025-07-01 19:36:10.735 TRACE: DUL Event: A-ASSOCIATE-RJ PDU (on transport)
2025-07-01 19:36:10.735 TRACE: DUL Action: AE 4 Associate Confirmation Reject
2025-07-01 19:36:10.735 DEBUG: Association Rejected:
2025-07-01 19:36:10.735 DEBUG: Result: Rejected Permanent, Source: Service User
2025-07-01 19:36:10.735 DEBUG: Reason: Called AE Title Not Recognized
2025-07-01 19:36:10.736 DEBUG: Cleaning up internal association and network structures
LG
T.Schulz
